Wing Model 925 Standard
 Wing Model 925 Standard |

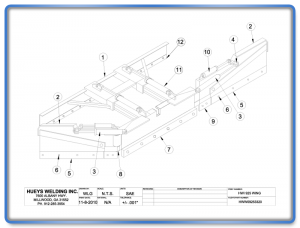

 Wing Model 925 Schematic
|
Click Images To Enlarge |
|
Wing Model 925 Standard Parts List
ITEM NO. |
QTY. 1 UNIT |
PART NO. |
DESCRIPTION |
| 1 | 1 | HWW-09253320 | WING ASSEMBLY NEW DOORS |
| 1 | 1 | HWW-09253320RM | WING ASSEMBLY REMAND |
| 2 | 2 | HWW-09251257S | WING TEMPLATE STANDARD LH&RH |
| 2 | 2 | HWW-09251257 | WING TEMPLATE ARTICULATING LH&RH |
| 3 | 2 | HWW-09252242 | TEMPLATE DOOR CYLINDER |
| 4 | 8 | HWW-09251261 | CYLINDER PIN 1 1/2″ X 3″ |
| 5 | 4 | HWW-0925443 | TEMPLATE DOOR WEAR PLATE |
| 6 | 24 | HWW-0925583 | WEAR PLATE BOLTS |
| 7 | 2 | HWW-0925450 | WING BOX WEAR PLATE |
| 8 | 2 | HWW-09251552 | HINGE PIN BOX WELDMENT |
| 8 | 4 | HWW-09252823 | HINGE PIN TEMPLATE WELDMENT |
| 8 | 2 | HWW-09251268 | HINGE PIN 1 3/4″ X 20 3/4″ |
| 9 | 4 | HWW-0925490 | SMALL TEMPLATE WEAR PLATE |
| 10 | 2 | HWW-09252243 | ARTICULATING CYLINDER |
| 11 | 2 | HWW-09253205 | SLIDER CYLINDER |
| 12 | 4 | HWW-0925449 | REAR HEADER WEAR PLATES |
| 13* | 1 | HWI-090162440 | KBR 925 LOCK OUT WELDMENT |
