Broom Model 26-46 Reversible


Broom Model 26-46 Reversible
Broom Model 26-46 Reversible

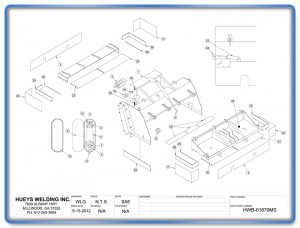

Broom Model 26-46 Reversible Schematic

Download In PDF Format Click To Download Broom Model 26-46 Reversible Schematic in PDF Format

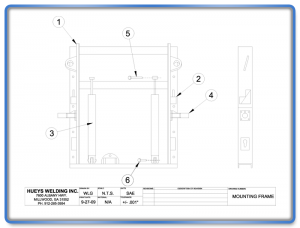

Plow Model 26-46 Mounting Frame Schematic

Download In PDF Format Click To Download Broom Model 26-46  Mounting Frame Schematic in PDF Format

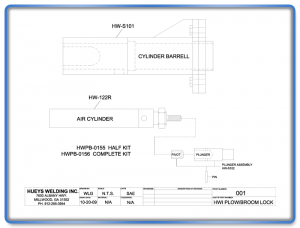

Broom Model 26-46 Lock Assembly Schematic

Broom Model 26-46 Lock Assembly Schematic



Part Numbers on Drawing

 Download In PDF Format Click To Download Broom Model 26-46  Lock Assembly Schematic
in PDF Format
Click Images To Enlarge

Broom Model 26-46 Reversible Parts List

ITEM NO.

QTY. 1 UNIT

PART NO.

DESCRIPTION
1 1 HWB- 01870MS REVERSING BROOM ASSY BELT DRIVE
2 2 HWB-0353560 FRONT OR REAR SKIRT 112″ X 18″
3 1 HWB- 0419230 HYD. MOTOR 10000 SERIES
3* 1 HWB-151B2184 DAN FAUS HYD. MOTOR (OMV400)
4 1 HWB- P14M85SF SMALL DRIVE PULLEY
5 1 HWB- B85SF225 SMALL DRIVE PULLEY BUSHING
6 1 HWB- P14M85F LARGE DRIVE PULLEY
7 1 HWB- B85F250 LARGE DRIVE PULLEY BUSHING
8 2 HWB- 01610990 BROOM REEL BEARING
8* 1 HWB- W1 BEARING PROTECTOR DRIVE END
8* 1 HWB- W2 BEARING PROTECTOR DEAD END
9 1 HWB- 1850BED BELT DRIVE DOOR
10 1 HWB- 0270620 BELT DRIVE DOOR GASKET
11 1 HWB-B14N85 3″ DRIVE BELT
12 1 HWB-0379A REEL DROP OUT PLATE
13 1 HWB- 0379 HYD. MOTOR PLATE
14 1 HWB- 0314310 HYDRAULIC CYLINDER
15 4 HWP- 0326230 3″ BEARING ASSEMBLY
15 4 HWB- P0087 4″ ROLLER BEARING
15 4 HWB- P0067 5″ ROLLER BEARING
16 2 HWB- 01519060 HALF NUT (1 1/2″)
17 2 HWB-0353580L SIDE SKIRT LH 42″ X 18″
18 4 HWB- P0066 BEARING STUD & NUT  4″ OR 5″
19 2 HWB- 0353480 BROOM DEPTH ADJ. SCREW
20 1 HWB-0352820 REAR BAFFLE LH  14″ BACK
21 1 HWB-0352760 REAR BAFFLE RH  14″ BACK
22 1 HWB-03528204 FRONT BAFFLE LH 4″ BACK
23 1 HWB-03527604 FRONT BAFFLE RH 4″ BACK
24 2 HWB-0353580R SIDE SKIRT RH 42″ X 18″
25 2 HWB-0352890 ADJUSTABLE SIDE SKIRT BRACKET RH
26 2 HWB-0352860 ADJUSTABLE SIDE SKIRT BRACKET LH
27* 4 HWP- 02192690 BRASS WASHER FOR ROLLER BEARING
28 1 HWB-0653000 BROOM DEFLECTOR  (RUBBER KIT )
28* 1 HWB-0653000FB BROOM DEFLECTOR (RUBBER KIT W/ FLAT BAR
29 4 HWP-0353610 HINGE PIN SIDE SKIRT
30 2 HWB-03535804 SIDE HOUSING SKIRT 48″ X 8″
32 4 HWDB-1520125 SIDE SKIRT CYL.
33 2 HWB-07676140 LH SIDE SKIRT BRACKET W/ CYL. EYE
33 2 HWB-07676150 RH SIDE SKIRT BRACKET W/ CYL. EYE
34 1 HWB-0352660 REAR DEFLECTOR ASSY
34* 1 HWDB-0352660 DEFLECTOR DOOR ASSY.  W/ SIDE SKIRT CYL.
35* 6 HWB-01 RUBBER LINERS 12 1/2″ X 55 1/4″
36* 2 HWB-02 RUBBER LINERS 15 1/8″ X 55 1/4″
37* 1 HWI-0200645 RECEIVER TOW HITCH
       * NO ILLUSTRATION

Plow and Broom Mounting Frame

ITEM NO.

PER FRAME

PART NO.

DESCRIPTION
1 1 HWB-P00681 MOUNTING FRAME
2 24 HW-02560 SHIMS
3 2 HWP-0314310 HYDRAULIC CYLINDER
4 2 HWPB-0155 AIR LOCK SYSTEM
5 2 HWP-530732 CYL. PIN  ROD END   1″ X 5″
6 2 HWP-275633 CYL. PIN  HEAD END   1″ X 3″
