Broom Model Plasser Standard
 Broom Model Plasser Standard |

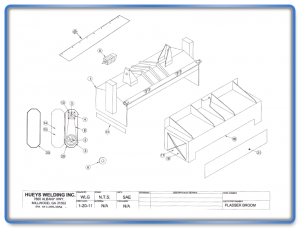

 Broom Model Plasser Standard Schematic |
Click Images To Enlarge |
|
|
|
Broom Model Plasser Standard Parts List
| ITEM NO. | QTY. 1 UNIT | PART NO. | DESCRIPTION |
| 1 | 1 | HWB- 01870P | BROOM ASSEMBLY BELT DRIVE |
| 2 | 2 | HWB- E60MM | TAPER BUSHING FOR 144-TOOTH PULLEY |
| 3 | 2 | HWB- P1448M50 | 144 TOOTH PULLEY |
| 4 | 2 | HWB- P488M50 | 48 TOOTH PULLEY |
| 5 | 1 | HWB- SD40MM | TAPER BUSHING FOR 48 TOOTH PULLEY |
| 6 | 2 | HWB- W3 | REEL BEARING PROTECTOR |
| 7* | 1 | HWB- DC510531P | DROP CENTER REEL |
| 8 | 2 | HWB- 24008M501 | DRIVE BELT |
| 9 | 2 | HWB-151B3000 | DRIVE MOTOR |
| 10 | 2 | HWB-0072-P | METRIC MOTOR PLATE |
| 11* | 1 | HWB-1679P | BAFFLE ASSEMBLY |
| 12* | 190 | HWB- 0201070 | SOLID BRUSH ROUND |
| 13* | 95 | HWB- 0460340 | BRUSH CLAMP |
| 14 | 1 | HWB-1850L | DRIVE BELT DOOR LEFT HAND |
| 15 | 1 | HWB-1850R | DRIVE BELT DOOR RIGHT HAND |
| 16 | 1 | HWB-11237P | DEFLECTOR ASSEMBLY |
| 17 | 1 | HWB-1626L | ROCK DEFLECTOR DOOR L H |
| 18 | 1 | HWB-1626R | ROCK DEFLECTOR DOOR R H |
| 21 | 1 | HWB-1896P | DEFLECTOR SKIRT 18″ X 96″ |
| 22 | 1 | HWB- 24110P | FRONT BROOM SKIRT 24″ X 110 3/4″ |
| 23 | 2 | HWB-1/4EPDM | BELT DOOR GASKET |
| 25* | 2 | HWB- 3SCMPLFLG | REEL FLANGE BEARING |
| 26* | 4 | HWB-01 | RUBBER LINER 12 1/2″ X 55 1/4″ |
| 27* | 4 | HWB-03 | RUBBER LINER 14 1/2″ X 55 1/4″ |
| 28* | 2 | HWB-05 | RUBBER LINER 6 1/4″ X 55 1/4″ |
| 29 | 1 | HWB-0379A | REEL DROP OUT PLATE |
| 30* | 2 | HWB-04 | RUBBER LINER SIDE DOOR 14″ X 25″ |
| 31 | 2 | HWB-03535804 | BROOM SIDE SKIRT |
