Plow Model 26-46 Standard
Huey’s Welding offers the highest quality remanufactured ballast regulator Plow Model 26-46 Standard components since 1991 for class one and short line railroads.

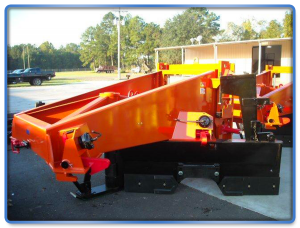

Plow Model 26-46 Standard
SCHEMATICS
Plow Model 26-46 Standard Schematic
Plow Model 26-46 Standard Blade Schematic
Plow Model 26-46 Mounting Frame Schematic
Plow Model 26-46 Lock Assembly Part Numbers on Drawing
PARTS LISTS
Plow Model 26-46 Parts List
ITEM NO. |
QTY. 1 UNIT |
PART NO. |
DESCRIPTION |
| 1 | 1 | HWP-1018 | PLOW ASSY. 3" BEARING |
| 1 | 1 | HWP-01018M4 | PLOW ASSY. 4" BEARING |
| 1 | 1 | HWP-01018M5 | PLOW ASSY. 5" BEARING |
| 2 | 4 | HWP-0314310 | HYD. CYLINDER 27" X 3" |
| 3 | 1 | HWP-01086740 | PIN, ROD END OF CYL. 1" X 5 1/4" |
| 4 | 4 | HWP- P0066 | BEARING STUD & NUT 4" OR 5" |
| 5 | 4 | HWB- P0087 | 4" ROLLER BEARING |
| 5 | 4 | HWB- P0067 | 5" ROLLER BEARING |
| 6 | 2 | HWP- 0353480 | STOP ADJUSTER |
| 7 | 2 | HWP- 01507520 | STOP ADJUSTER NUT 1 1/2" |
| 8 | 4 | HWP- 01623620 | AIR CHAMBER BLADE LOCK |
| 9 | 4 | HWP- 01111280 | AIR CHAMBER CLEVIS 1/2" |
| 10 | 4 | HWP- 0109620 | BLADE LOCK SPRING |
| 11 | 4 | HWP-01020390 | STANDARD BLADE LOCK |
| 11 | 4 | HWP-010203901 | SOLID STEEL BLADE LOCK |
| 12 | 4 | HWP- 0102040 | BLADE LOCK PIN 1 1/2" X 8 1/2" OLD |
| 12 | 4 | HWP- 0102041 | BLADE LOCK PIN 1 1/2" X 8 1/2" NEW |
| 13 | 1 | HWP- 01474730 | PLOW SKID SHOE |
| 14 | 1 | HWP- 01096170 | PLOW SKID BTI |
| 15 | 1 | HWP-10961ZM | SKID BRACE REAR OF PLOW |
| 16 | 1 | HWP- 01096120 | SKID BRACE FRONT OF PLOW |
| 17 | 4 | HWP- 01072350 | SKID BRACE SHIMS |
| 18 | 2 | HWP- 01656370 | ROTATOR CAM |
| 19 | 4 | HWP- 0326230 | 3" BEARING ASSEMBLY |
| 21 | 2 | HWP-01050180 | PLOW SHAFT TAPER BUSHING |
| 22 | 1 | HWP-01020370 | PLOW SHAFT |
| 24 | 2 | HWP-530732 | CYL. PIN ROD END 1" X 5" |
| 25 | 4 | HWP-275633 | CYL. PIN HEAD END 1" X 3" |
| 26* | 2 | HWP-01159610 | DUAL PORT RELIEF VALVE |
| 27* | 1 | HWP-0229859 | QUICK RELEASE AIR VALVE |
| 28* | 2 | HWP-01086680 | CYL. PIN WELDMENT PLOW BLADE |
| 29* | 4 | HWP-02192690 | BRASS WASHER 1/8" (FOR ROLLER BEARING) |
| 30* | 4 | HWP-01845370 | BRASS WASHER 1/4" (FOR ROLLER BEARING) |
| 31* | 4 | HWP-01832230 | BRASS WASHER .020 (FOR ROLLER BEARING) |
Plow Model 26-46 Blade Assembly Parts List
ITEM NO. |
QTY. 1 UNIT |
PART NO. |
DESCRIPTION |
| 1 | 1 | HWP-01019690 | PLOW BLADE L.H. (WITH BUSHINGS) |
| 2 | 1 | HWP-0101970 | PLOW BLADE R.H. (WITH BUSHINGS) |
| 3 | 4 | HWP-01072380 | PLOW BLADE BUSHING (FIBERGLASS) |
| 4 | 4 | HWP-01166570 | PLOW WEAR PLATE ( 2 BOLT HOLES) |
| 4* | 4 | HWP-01166570CT | CONCRETE TIE WEAR PLATE (2 BOLT HOLE) |
| 4* | 4 | HWP-01166570C | COMBINATION WEAR PLATE (2 BOLT HOLE) |
| 5 | 2 | HWP-01020410 | PLOW ADJUSTABLE RAIL PLATE |
| 7 | 4 | HWP-01166560 | PLOW WEAR PLATE ( 3 BOLT HOLES) |
| 7* | 4 | HWP-01166560CT | CONCRETE TIE WEAR PLATE (3 BOLT HOLE) |
| 7* | 4 | HWP-01166560C | COMBINATION WEAR PLATE (3 BOLT HOLE) |
| 9 | 10 | HWP-01096210 | PLOW BLADE BOLT (5/8" X 3 1/2") |
| 10 | 10 | HWP-0150840 | LOCK WASHER (5/8") |
| 11 | 10 | HWP-01518820 | HALF NUT (5/8") |
| 12 | 4 | HWP-01501030 | HD. BOLT (3/4" X 3 1/2") |
| 13 | 4 | HWP-01020430 | BRASS WASHER (1/8") |
| 14 | 1 | HWP-0114310 | BRASS WASHER (1/16") |
| 15 | 1 | HWP-01055420 | STEEL WASHER |
| 16 | 2 | HWP-01086680 | CYL. PIN WELDMENT |
| 17* | 2 | HWP-01086740 | CYL. PIN WELDMENT PIN ONLY |
| 18* | 1 | HWP-0462100 | BOLT KIT FOR PLOW WEAR BLADES |
| 19* | 12 | HWP-04625015 | BOLT PROTECTORS |
| *NO ILLUSTRATION |
|||
Plow Model 26-46 Mounting Frame Parts List
ITEM NO. |
PER FRAME |
PART NO. |
DESCRIPTION |
| 1 | 1 | HWB-P00681 | MOUNTING FRAME |
| 2 | 24 | HW-02560 | SHIMS |
| 3 | 2 | HWP-0314310 | HYDRAULIC CYLINDER |
| 4 | 2 | HWPB-0155 | AIR LOCK SYSTEM |
| 5 | 2 | HWP-530732 | CYL. PIN ROD END 1" X 5" |
| 6 | 2 | HWP-275633 | CYL. PIN HEAD END 1" X 3" |
