Wing Model 46 Articulating
Huey’s Welding offers the highest quality remanufactured ballast regulator Wing Model 46 Articulating components since 1991 for class one and short line railroads.
Wing Model 46 Articulating
SCHEMATICS
Wing Model 46 Articulating Schematic

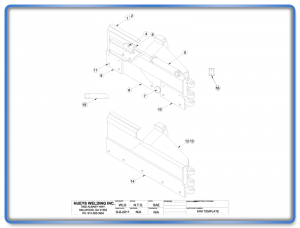

Wing Model 46-6-2 Articulating Schematic
Wing Model 46-2 Standard Slider Assembly Schematic
PARTS LISTS
Wing Model 46 Articulating Parts List
ITEM NO. |
QTY. 1 UNIT |
PART NO. |
DESCRIPTION |
| 1 | 1 | HWW-0462R | WING ASSEMBLY REMAND |
| 1 | 1 | HWW-0462A | WING ASSEMBLY NEW |
| 1* | 1 | HWW-0462AL | WING ASSY. LESS YOKE & SLIDER REMAND |
| 1* | 1 | HWW-0462NE | WING ASSY. LESS YOKE & SLIDER NEW |
| 2 | 6 | HWW-02185100 | CYL. PIN 1″ X 3″ |
| 3 | 2 | HWW-02185097 | PIN TILT CYL. BARREL END 1″ X 7 1/4″ |
| 4 | 1 | HWW-02185090 | PIN TILT CYL. ROD END 1″ X 3″ |
| 5 | 1 | HWW-02185370 | HYDRAULIC CYLINDER WING TILT |
| 6 | 2 | HWW-01840920 | HYDRAULIC CYLINDER WING DOOR |
| 7 | 2 | HWW-01840900 | ARTICULATE CYL. 10″ STROKE |
| 8 | 12 | HWW-02 | DOOR HINGE WELDMENT |
| 8 | 2 | HWW-07000770 | DOOR HINGE PIN 1 1/2″ X 16 3/8″ |
| 8 | 2 | HWW-07000760 | SPACER |
| 9 | 1 | HWW-01749770 | HYDRAULIC CYLINDER 3″ X 27″ WING EXT. |
| 10 | 12 | HWW-02214270 | BOLT FOR WEAR PLATE |
| 11 | 1 | HWW-02185070 | PIN SLIDER TO WING 2″ X 19 1/8″ |
| 12 | 4 | HWW-02234180 | WEAR BLADE INNER WING BOX 3/4″ X 4″ X 54″ |
| 12* | 2 | HWW-02234180W | WEAR BLADE OUTSIDE HEADER 3/4″ X 4″ X 54″ |
| 13* | 1 | HWW-07001440 | WING TEMPLATE RF & LR |
| 14* | 1 | HWW-07001530 | WING TEMPLATE LF & RR |
| 15 | 4 | HWW-01693470 | PIN YOKE TO MACHINE |
| 18 | 1 | HWW-01485900 | CLAMP TOP BOLT ON |
| 19 | 1 | HWW-07043340 | WING MOUNT YOKE 46″ |
| 20 | 2 | HWW-01483900 | CLAMP BOTTOM WELD ON |
| 21* | 1 | HWW-05480 | WEAR PLATE KIT ONE WING 46-6 |
| 22* | 1 | HWW-07409110 | BOTTOM ROLLER (SLIDER BOX) |
| 23* | 1 | HWW-07843590 | BOTTOM ROLLER PIN (SLIDER BOX) |
| 24* | 2 | HWW-07409111 | SIDE ROLLER WING SLIDER |
| 25* | 2 | HWW-07843591 | SIDE ROLLER PIN WING SLIDER |
| 26 | 4 | HWW-02241870 | WEAR PLATE 46 WING 3/4″ X 9″ X 17″ |
| 27 | 4 | HWW-02241860 | WEAR PLATE 46 WING 3/4″ X 9″ X 10 3/4″ |
| 28 | 2 | HWW-02242120 | WEAR PLATE 46 WING 3/4″ X 9″ X 37 5/8″ |
| 29* | 2 | HWW-035050 | ROCK GUARD |
| 30* | 2 | HWW-0464080 | WING TIP WEAR PLATES |
| 31* | 12 | HWP-04625015 | BOLT PROTECTORS |
| 32* | 1 | HWW-046228 | BOLT KIT FOR WEAR BLADES |
| 33* | 1 | HWW-046228-P | BOLT KIT FOR WEAR BLADES W/ BOLT PROTECTORS |
| * NO ILLUSTRATION | |||
Wing Model 46 Articulating Template Parts List
ITEM NO. |
QTY. 1 UNIT |
PART NO. |
DESCRIPTION |
| 1 | 1 | HWW-07001530 | WING TEMPLATE L.F. R.R. |
| 2 | 1 | HWW-07001440 | WING TEMPLATE R.F. L.R. |
| 4 | 2 | HWW-02185100 | CYL. PIN 1″ X 3″ |
| 5 | 1 | HWW-01840900 | HYDRAULIC CYLINDER |
| 6 | 1 | HWW-02076600 | CLEVIS |
| 7 | 1 | HWW-01481650 | SCREW 1″ X 4″ |
| 8 | 1 | HWW-02242120 | WEAR PLATE 3/4″ X 9″ X 37 5/8″ |
| 9 | 2 | HWW-02241860 | WEAR PLATE 3/4″ X 9″ X 10 3/4″ |
| 10 | 2 | HWW-02241870 | WEAR PLATE 3/4″ X 9″ X 17″ |
| 11 | 8 | HWW-01096210 | BOLT DOME 5/8″ X 2 1/2″ GRADE EIGHT |
| 12 | 1 | HWW-07000640 | WING TEMPLATE RF & LR |
| 13 | 1 | HWW-07000750 | WING TEMPLATE LF & RR |
| 14 | 2 | HWW-02185080 | WEAR PLATE 3/4″ X 9″ X 50″ |
| 15 | 1 | HWW-0386310 | SHIM FOR WEAR PLATE |
| 16 | 1 | HWW-0124600 | SHIM FOR TRUNION |
Wing Model 46 Slider Box Parts List
ITEM NO. |
QTY. 1 UNIT |
PART NO. |
DESCRIPTION |
| 1 | 1 | HWW- 07412620 | WING SLIDER BOX 46-6 STD. |
| 2 | 1 | HWW-07001670 | WING SLIDER BOX 46-2 LEFT HAND |
| 2 | 1 | HWW-07001660 | WING SLIDER BOX 46-2 RIGHT HAND |
| 3 | 1 | HWW-07843660 | WING SLIDER BOX 46-1 9 1/4″ |
| 4* | 1 | HWW-9251260 | WING SLIDER BOX 925 6″ X 12″ |
