Plow Model 900
 Plow Model 900
|

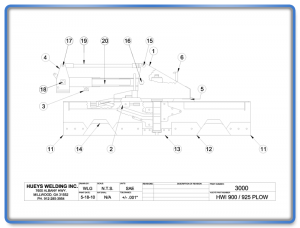

 Plow Model 900 Schematic
|
Click Images To Enlarge |
|
Plow Model 900 Parts List
ITEM NO. |
QTY. 1 UNIT |
PART NO. |
DESCRIPTION |
| 1 | 1 | HWP-01018K | 900/925 PLOW ASSY. SCISSOR LIFT |
| 1A | 1 | HWP-01018M5 | HWI 925 PLOW ASSY. & MOUNTING FRAME |
| 2 | 2 | HWP-0314310 | HYDRAULIC CYLINDER PLOW BLADE |
| 3 | 2 | HWP-06959K | PLOW STOP |
| 4 | 4 | HWP-096DP | PLOW LOCK UP AIR CYL. |
| 5 | 4 | HWP-01958K | BLADE LOCK PIN |
| 6 | 4 | HWP-094DP | BLADE LOCK AIR CYL. |
| 11 | 4 | HWP-1087K | BLADE 3 HOLE |
| 12 | 4 | HWP-1018K | BLADE 2 HOLE |
| 13 | 4 | HWP-1399K | BLADE 2 HOLE SMALL (CENTER) |
| 14 | 2 | HWP-1198K | RAIL PLATE |
| 15 | 1 | HWP-1634112 | TOP LINK PIN AT PLOW 1 1/2″ x 19 1/2″ |
| 16 | 1 | HWP-0163430 | BOTTOM LINK PIN AT PLOW 3″ x 17 1/4″ |
| 17 | 2 | HWP-0061120 | TOP LINK PIN AT REGULATOR 1 1/2″ x 6 1/2″ |
| 18 | 2 | HWP-0006300 | BOTTOM LINK PIN AT REGULATOR 3″ x 6 1/2″ |
| 19 | 1 | HWP-9001151 | TOP LINK PLOW STABILIZER |
| 20 | 1 | HWP-9001001 | BOTTOM LINK PLOW LIFT |
| 21* | 1 | HWP-010961K1 | PLOW FRONT BRACE |
| 22* | 1 | HWP-010961K2 | PLOW REAR BRACE |
